The All Axle motor is a direct-drive front hub that we designed to be universally compatible with all the variety of quick release and thru-axle front fork standards that exist in the bike world these days, as well as many single side mounts for trike and quad vehicles. The round hollow axle means that the motor produces no spreading forces on slotted dropouts, and instead is able to transfer all the torque safely to the fork blade via a built-in torque arm.
The All Axle motor has the following characteristics:
- 4.0 kg motor weight (vs >6kg for comparable generic DD motor)
- 0.35mm Laminations for low motor drag when pedaling unassisted
- Integrated Torque Arm with secure fork mounting clamp
- Fits All Front Fork Standards (regular quick release, QR12x100, QR15x100, QR15x110 Boost, QR15x150 Fatbike, and QR20x110) through the use of simple adapters
- Compatible with Single Side Installation on many trike and quad vehicles
- Uses 32 Spoke Holes for vastly more in stock rim options
- 18mm Disk Caliper Clearance fits most (but not all) calipers without spacers
- Statorade Compatible with side cover injection port
- Available in both metallic silver and black anodized finish
- Designed and Assembled in Canada

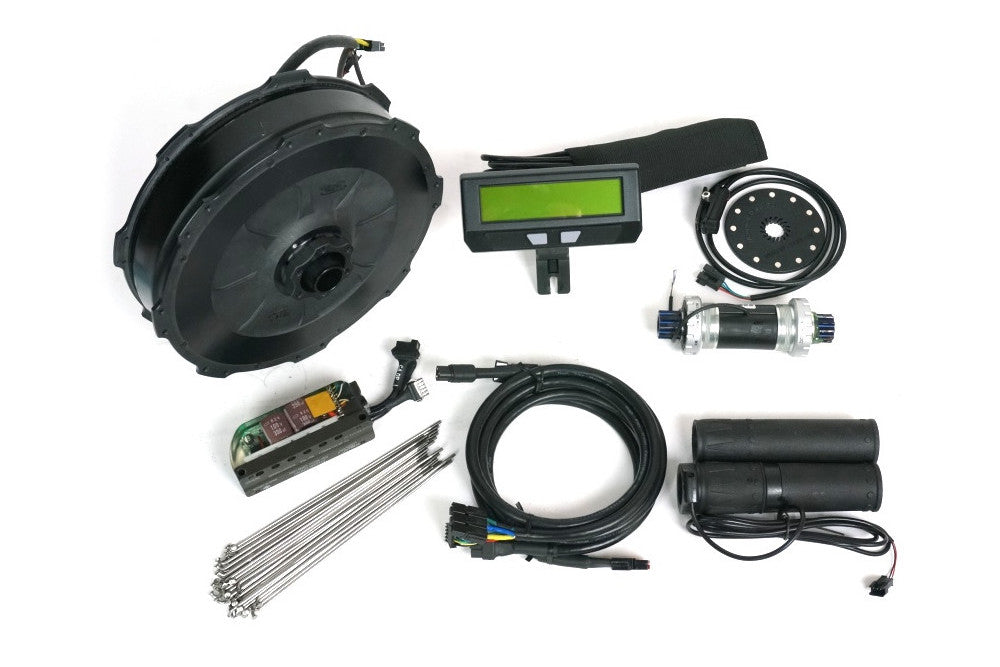

Kit Includes:
- Motor
- Motor Controller
- Torque Sensing 63mm Bottom Bracket, 4-hole crank, crank arms
- LCD Display
- Pedal Assist Controls
**Kit does not include battery.
